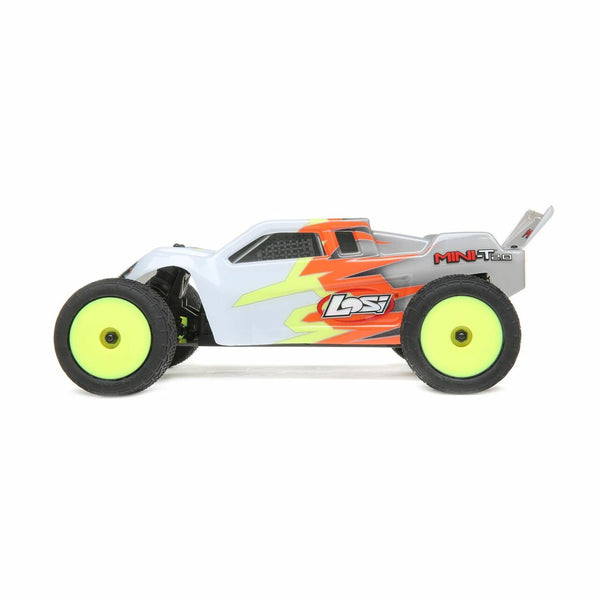

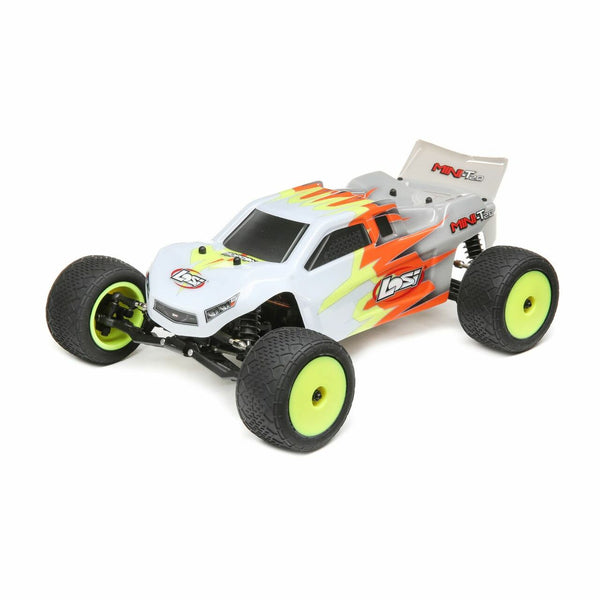

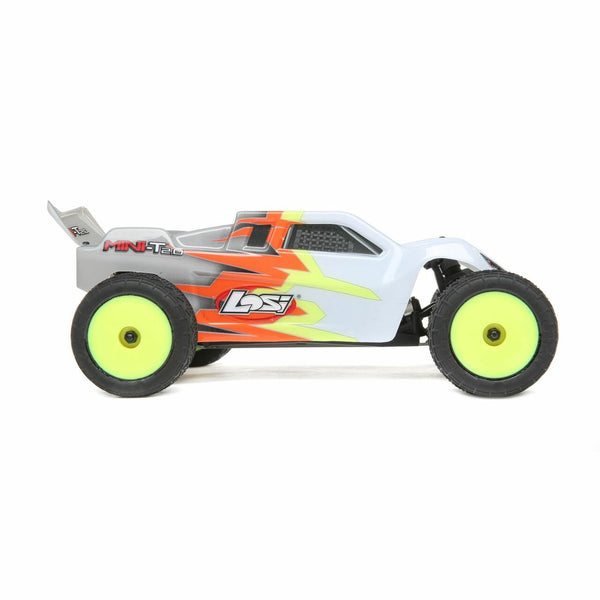

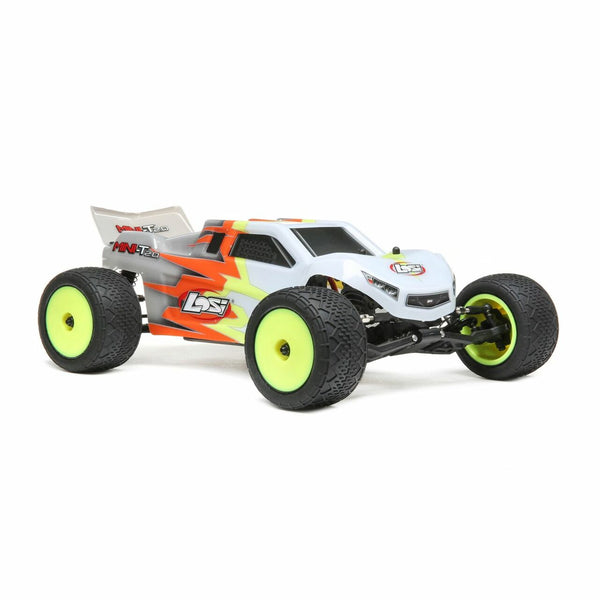

Losi LOS01015t3 1/18 Mini-T 2.0 2wd Stadium Truck RTR, Grey/white
Features
- Threaded Oil Filled Shocks
- Aluminum Chassis
- Scaled Down Version of the Team Losi Racing® 1/10th 22T Stadium Truck
- Fully assembled and ready-to-run
- Spektrum Metal Gear Servo with Servo Saver
- Dynamite® 7.4V 2S 650mAh 20C Li-Po Battery
- 22 Suspension Geometry
- Mid Motor Configuration
- BK Bar Tires with Dish Wheels
- Ball Bearings Installed
- Option Parts Available
- Waterproof electronics*
Features
- Scaled Down Version of the 1/10th 22T
- Mid Motor Configuration
- Aluminum Chassis
- Threaded Oil Filled Shocks
- Fully assembled and ready-to-run
- Dynamite 7.4V 2S 650mAh 20C Li-Po Battery
- BK Bar Tires with Dish Wheels
- Full Ball Bearings (less steering)
- Servo Saver
- Waterproof electronics*
- 22 Suspension Geometry
- Option Parts Availability
Reinvented with modern technology and Team Losi Racing® engineering, the Losi® Mini-T® 2.0 1/18th-scale 2WD Truck honors the heritage of the original Mini-T with features and options never dreamed of back in the day. With suspension geometry updated and taken from the TLR® 22 platform and the inclusion of waterproof* electronics with a 2.4Ghz radio system, everything here takes a step above the Mini's on the market. RC enthusiasts looking for something small, but with the performance of a 1/10 scale vehicle will find plenty to love in the Mini-T 2.0. It features a mid-motor configuration for better balance, oil filled shocks, aluminum chassis, and a full range of option parts all in a total ready-to-run package. You get TLR engineering and performance in a 1/18th size package.
- Nothing! Everything is included.
- (1) Losi® 1/18 Mini-T 2.0 RTR Truck with:
- 3-CH 2.4GHz Transmitter
- ESC/Receiver 2.4GHz
- Dynamite® 47T 280 Brushed Motor
- Spektrum™ SX107 Micro Metal Gear Servo
- Dynamite 7.4V 650mAh 2S 20C EC2 LiPo Hardcase
- Dynamite USB 2S LiPo charger
- 4 AAA batteries (for transmitter)
- (1) Product Manual
Scaled-Down Version of the 1/10th TLR 22T
Back in 2003, Team Losi released the hugely successful Mini-T, which was based on the XXXT platform. Today’s Mini-T 2.0 is now based on our TLR 22T platform, taking advantage of what we’ve learned over the years to make this generation of Mini 2wd trucks unbeatable.

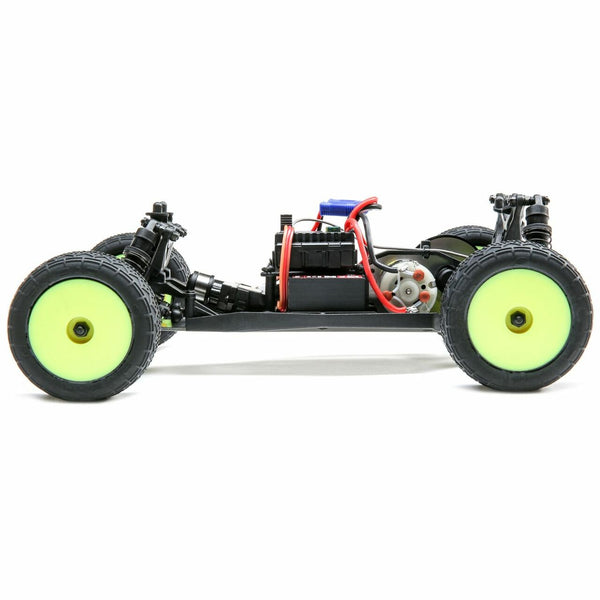

Mid Motor Configuration
The Mini-T 2.0 comes standard with a mid-motor configuration. This not only replicates the 1/10th version but also provides a better-balanced chassis allowing for better performance on multiple surfaces and also balances out steering and traction.
Aluminum Chassis
The Mini-T 2.0 has been designed with a 1.5mm thick 6061-T6 Aluminum chassis plate. The aluminum chassis provides more strength and durability while vastly improving performance.
Threaded Oil Filled Shocks
The injection-molded shocks feature threaded shock collars allowing for easy preload/ride height adjustments. Additionally, the shock bodies feature a bottom loading, re-buildable shock cartridge with dual o-rings to help keep the oil in the shocks.
Ready To Run
The Mini-T 2.0 comes fully assembled and ready to rock. Just install the included AAA batteries in the transmitter, charge the included LiPo battery with the included charger.
Dynamite Reaction 2.0 7.4V 2S 650mAh 20C Li-Po Battery
The Mini-T 2.0 comes equipped with a 2S 650mAh Li-Po Battery for excellent performance and run time.
USB Charger
When we say entirely ready to run, we mean it. The Mini-T 2.0 comes with a USB charger making charging your battery easy and convenient.
2.4Ghz Transmitter and Receiver
With features like throttle/steering reversing, throttle/steering travel adjust, the included 2.4Ghz transmitter packs a lot of features in a small package with the interference-free connection.
BK Bar Tires with Dish Wheels
Front and rear “Mini” BK Bar tires replicate one of the most popular tires from Team Losi. Injection-molded Dish wheels replicate the factory look of the 22T.
Full Ball Bearings*
The Mini-T 2.0 comes equipped with ball bearings that enhance vehicle performance by reducing drivetrain friction and increased smoother, longer running.
*Less steering bell crank
Servo Saver
The Mini-T 2.0 comes with an oversized three-wire Spektrum metal gear servo equipped with a servo saver that provides extra protection.
Waterproof* Electronics
All the Mini-T 2.0 components are waterproof, so you can drive in any conditions with no problems.
*For details on waterproof standards, please refer to the product instruction manual.
TLR 22T Suspension Geometry
The Mini-T 2.0’s suspension geometry has been derived from the TLR 22T platform providing balanced steering and traction from the optimized race design.
Option Parts
The Mini-T 2.0 has a full line of option parts available from aluminum upgrades, brushless motor, and much more.
Specifications
Approximate Assembly Time No assembly required
Ball Bearings Complete set except for steering
Batteries One 7.4V 650mAh 2S 20C LiPo with hard case
Body Molded polycarbonate with screen printed graphics
Brakes Integral with ESC
Charger 0.5A USB
Chassis 6061-T6 aluminum 0.06" (1.5mm) thick
Completion Level Ready-To-Run
Differential Bevel gear
Drivetrain 2WD
Gear Pitch 0.5 Module
Ground Clearance 0.97" (24mm)
Height 3.59" (91mm)
Length 9.16" (232mm)
Motor Size 280 size, 47 turn
Motor Type Brushed, Brushed
Pinion 15T
Radio Horizon 2.4GHz 3-channel
Servos Spektrum SX107 micro metal gear steering servo
Shock Type Oil-filled 7mm bore, molded shock bodies
Size/Scale 1/18
Speed Control Integral with receiver
Spur Gear 60T
Suspension Independent
Tire Diameter 2.18" (55mm)
Tire Tread BK Bar
Track 5.91" (150mm) front and rear
Vehicle Type 1/18 scale 2wd truck
Water-Resistant Yes
Wheel Diameter 1.46" (37mm)
Wheel Type Dish
Wheel Width 1.10" (28mm)
Wheelbase 6.30" (160mm)
Width 7.07" (179mm)
